Sensor support for Platinum and Titanium Dexis Sensors

Step one Go to https://dexis.com/en-eu/download-center

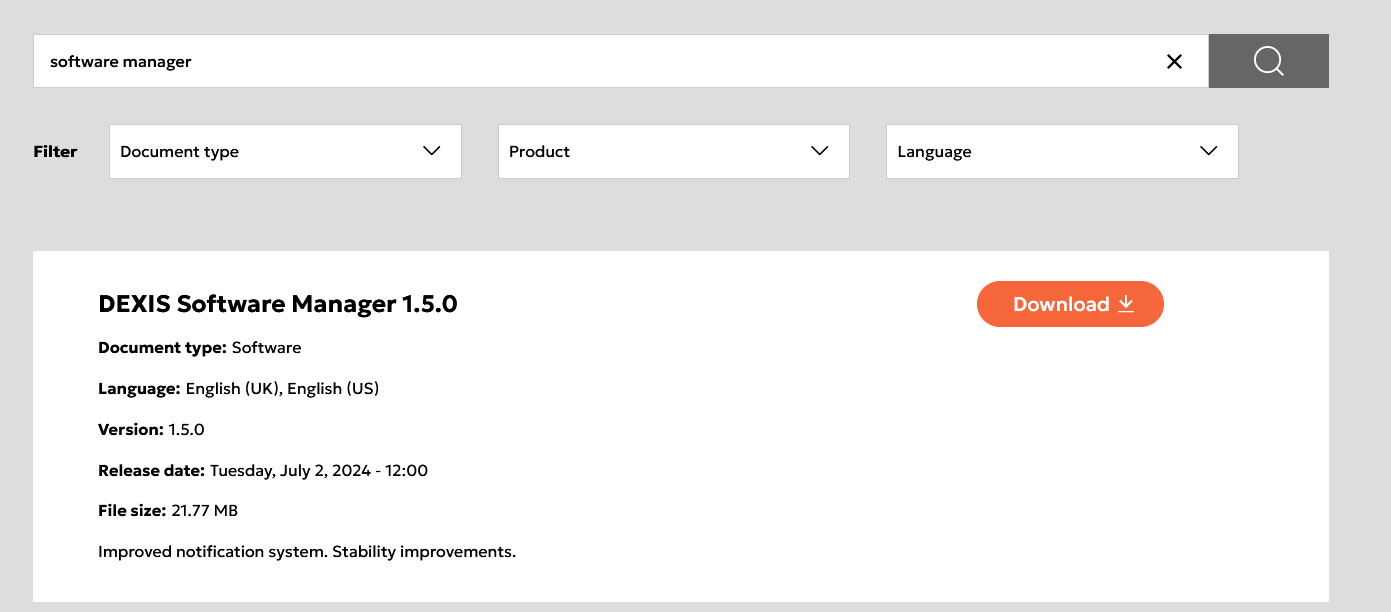

Step two Search for (Software Manager) and hit download

Step 3 Extract and open the installer

Step 4 Hit Next and proceed through the installer

(auto close any KAVO apps if prompted by hitting auto close)

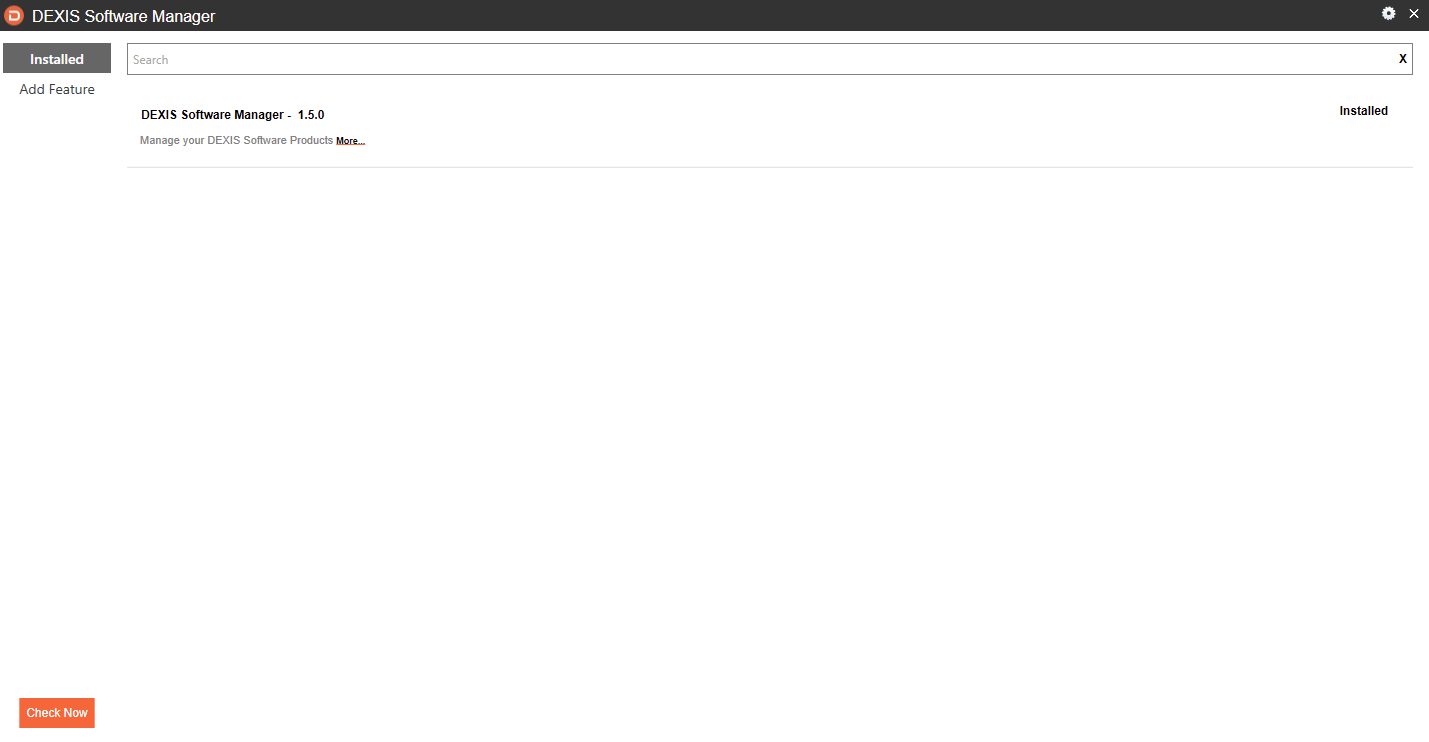

Step 5 Once installed search for ( Dexis Software Manager) on your Windows search bar and open the application

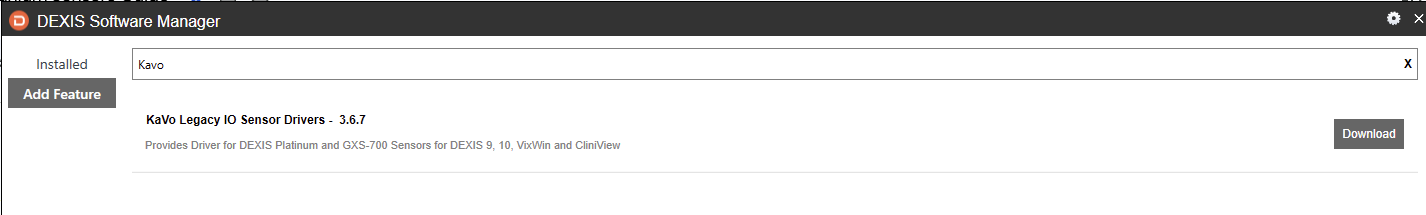

Step 6 Hit Add a feature at the top right of the app type in the search bar for Kavo Legacy Drivers and hit download then wait until the download is done and hit install

(Proceed through the install and hit next until the install is done then hit the finish button)

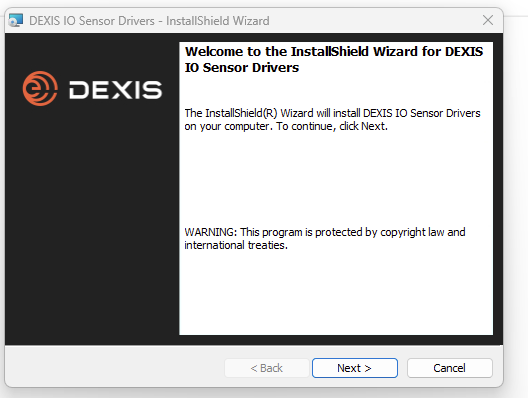

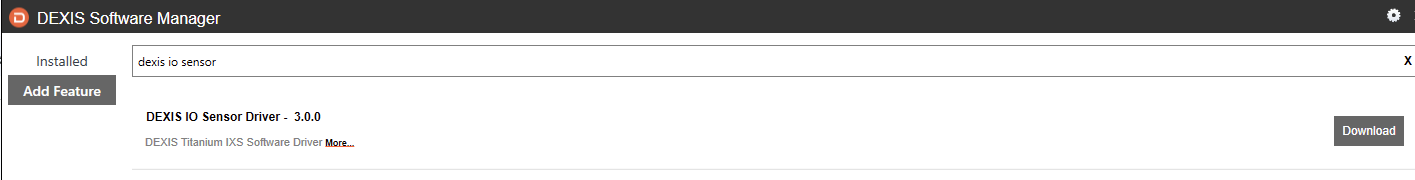

Step 7  Click add feature and search for Dexis Io Sensor Driver download and install this as well

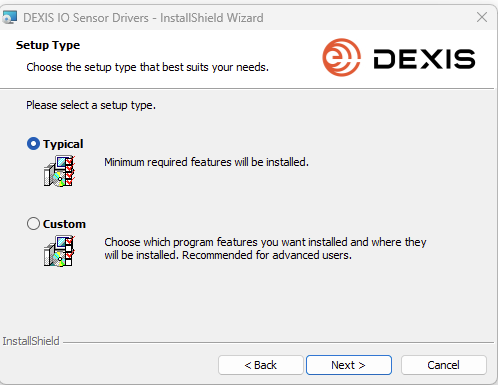

hit next and then hit Typical

Complete this install as normal and hit finish

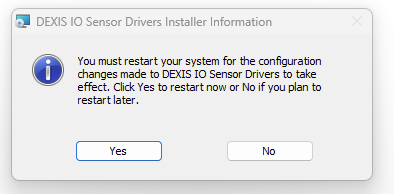

(DO NOT RESTART AFTER THIS INSTALL)

HIT NO

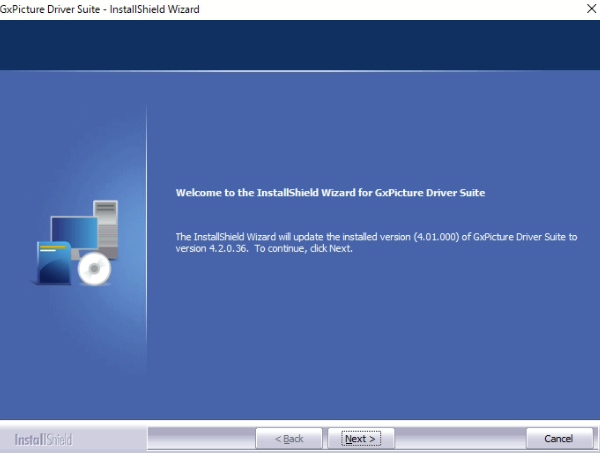

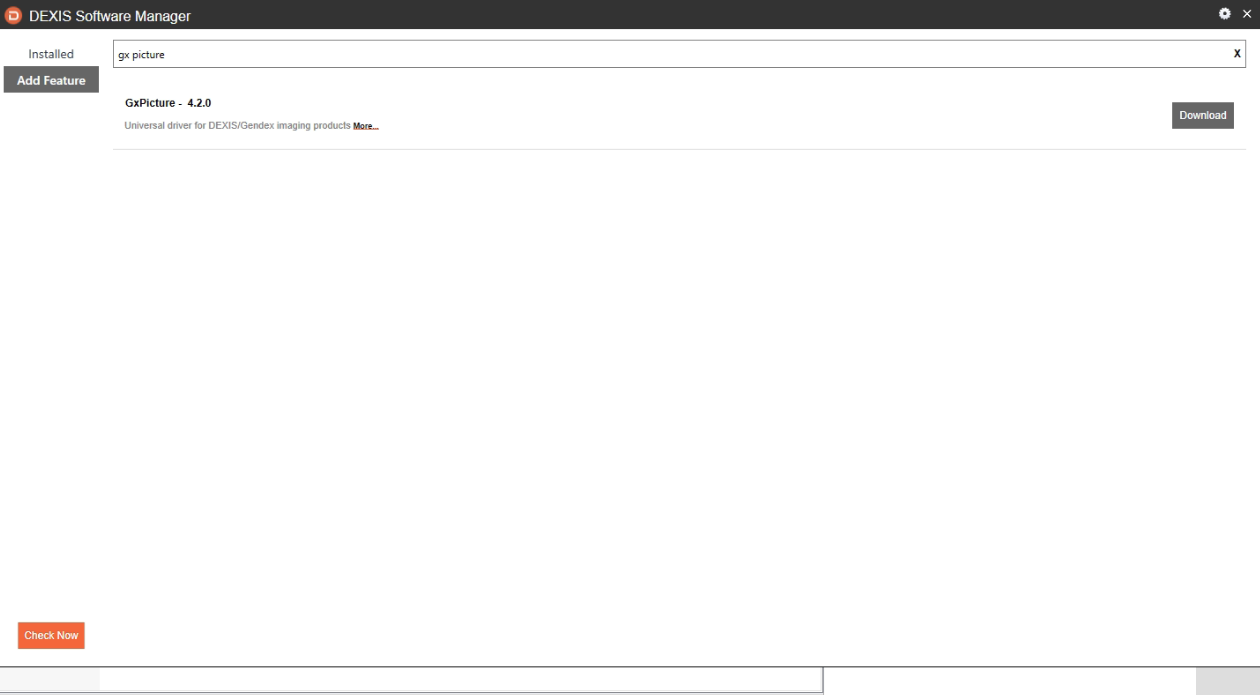

Step 8 Install (GX picture) by hitting next (You will need to search for GX picture in the Dexis software suite search bar at the top left of the app after you hit add a feature to get it to install)

Please note you must hit the box at the top right after downloading to start the installation process.

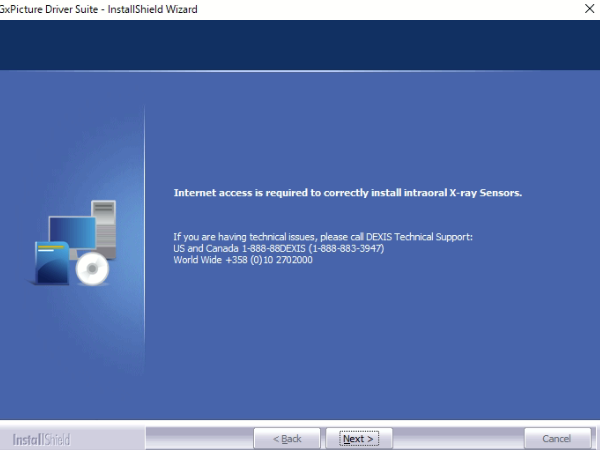

Hit Install, then hit Next

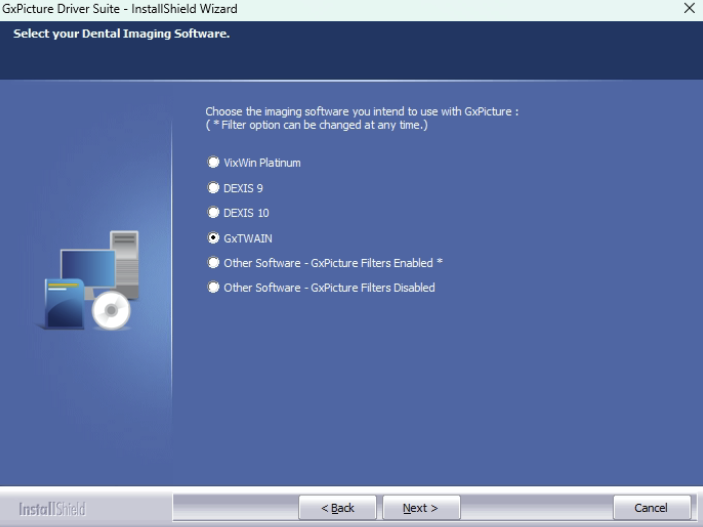

Step 9 Select GX twain from the options listed

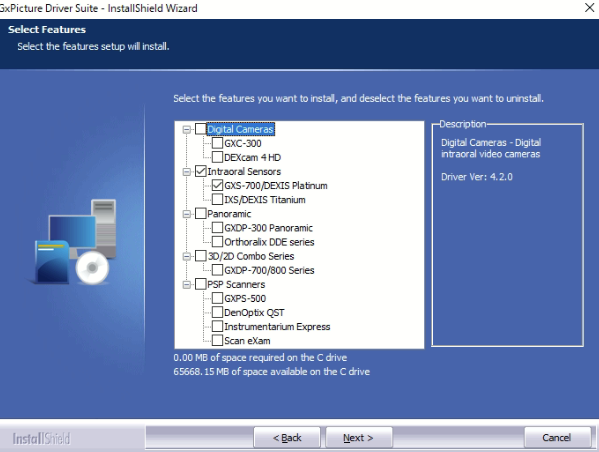

Step 10 After hitting next leave GXS-700/DEXIS Platinum checked (also select IXS\DEXIS Titanium if you are using that sensor as well) hit next

(When installing Platinum and Titanium sensors please SELECT BOTH CHECK BOXES)

Step 11 hit next

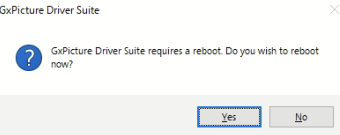

After GX Picture is installed DO NOT REBOOT, hit no

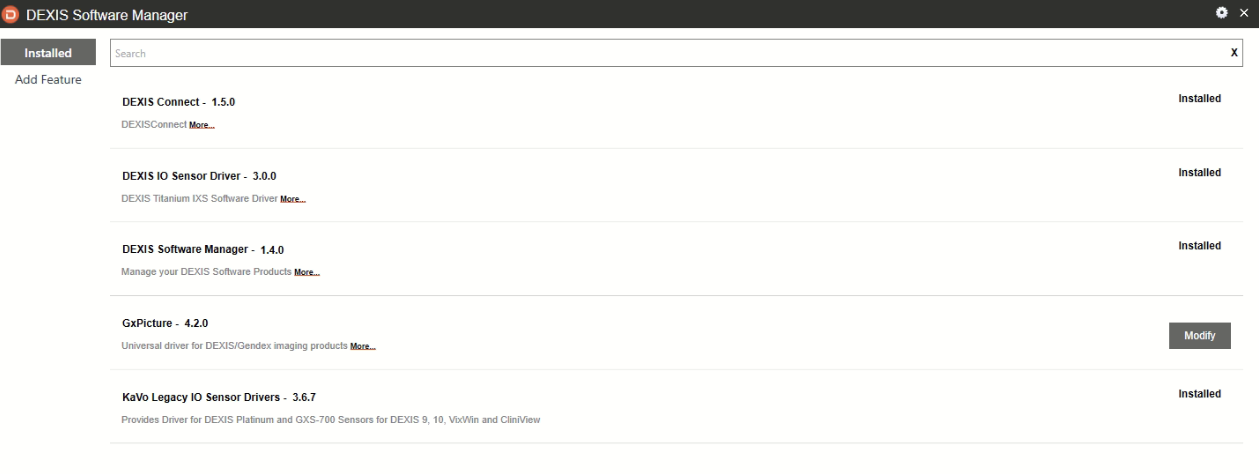

Step 12 wait for your DEXIS software manager to show this page then restart

(make sure all apps listed here are installed)

After that is done you are all good to go.

You might need to copy the calibration files if you run into a calibration file missing error to get this resolved please do the following

• To provide calibration to the twain driver, copy the existing calibration files, usually in one of the following locations
  • C:\DEXIS\FlashDir
  • C:\Program Files (x86)\DEXIS
• Copy those calibration files to C:\Program Files (x86)\Gendex\GXS700_CorrectionFiles.  You may need to create the folder “GXS700_CorrectionFiles”.

Dexis Twain License Information
Dexis recommends purchasing their Twain license, which includes a built-in image enhancement feature. This enhancement is automatically applied to images and significantly improves visual quality by modifying the default output from the sensor.

Please note the following:

• The Dexis image enhancement feature is available for 30 days as a trial.
• After the trial expires, the enhancement will be removed unless the Twain license is purchased.
• Without this license, you can continue to capture images in Archy using the sensor, but the Dexis-specific enhancement will no longer be applied.
• Image quality can still be improved using Archy’s built-in filtering options, though results may not match the depth of Dexis’s proprietary enhancement.

In summary, the Dexis Twain license is not required to take images in Archy, but it is necessary if you want to retain Dexis’s automatic image enhancement beyond the 30-day trial.
