Dexis Sensor Guide (No UI)

We continuously strive to improve your imaging experience and we’re excited to announce the latest improvement for Dexis sensors. You can now take continuous images with immediate uploads to the Archy mount, without having to use the GxTwain interface and take extra steps to click “Get Image” or “Get All.” To apply changes to your computers where you use Dexis sensors, you’ll need to do the following:

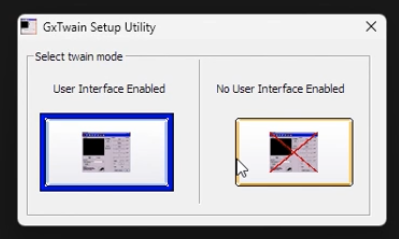

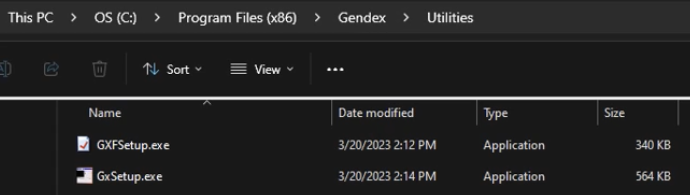

1. Navigate on your computer to your (C:) drive. Then go to Program Files (x86) > Gendex > Utilities. Click on GxSetup.exe and select “No User Interface Enabled”.

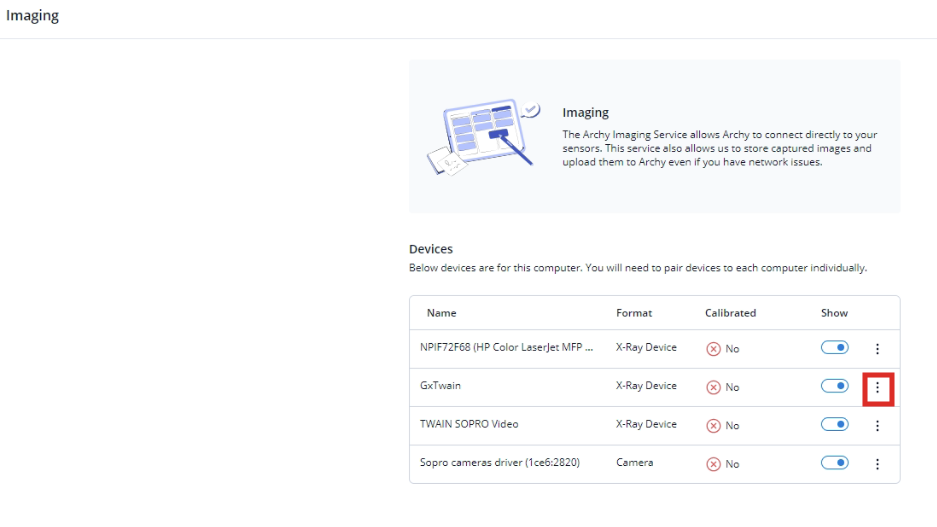

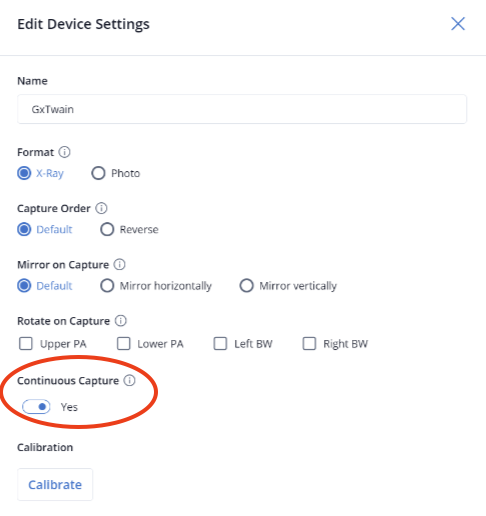

2. In Archy, go to your Image Settings and click to edit your GxTwain device. Toggle the “Continuous Capture” button to Yes.

 Select Hit Mount preferences

Need help? Schedule a call or contact support@archy.com

Dexis Twain License Information
Dexis recommends purchasing their Twain license, which includes a built-in image enhancement feature. This enhancement is automatically applied to images and significantly improves visual quality by modifying the default output from the sensor.

Please note the following:

• The Dexis image enhancement feature is available for 30 days as a trial.
• After the trial expires, the enhancement will be removed unless the Twain license is purchased.
• Without this license, you can continue to capture images in Archy using the sensor, but the Dexis-specific enhancement will no longer be applied.
• Image quality can still be improved using Archy’s built-in filtering options, though results may not match the depth of Dexis’s proprietary enhancement.

In summary, the Dexis Twain license is not required to take images in Archy, but it is necessary if you want to retain Dexis’s automatic image enhancement beyond the 30-day trial.
