Comparing Images By Tooth Label

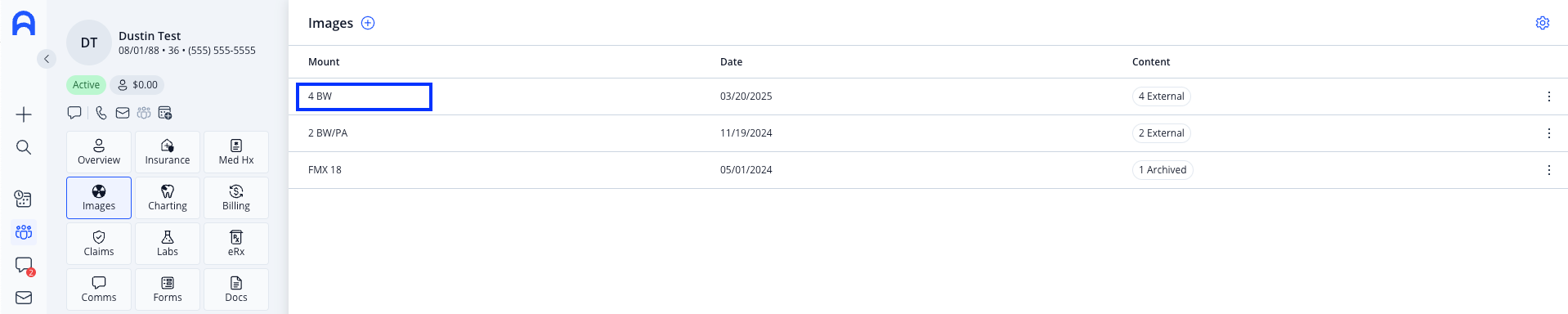

From the patient's Images select the series where the image is located.

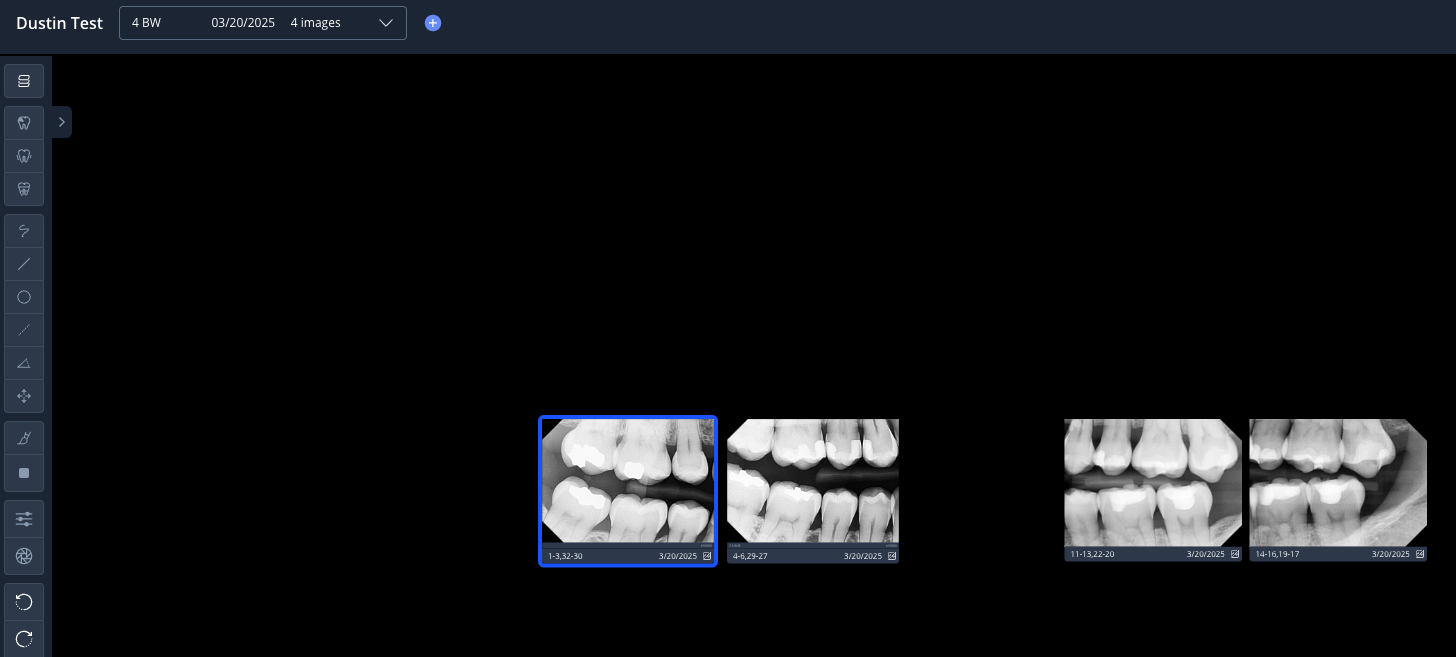

Select the image you want to compare.

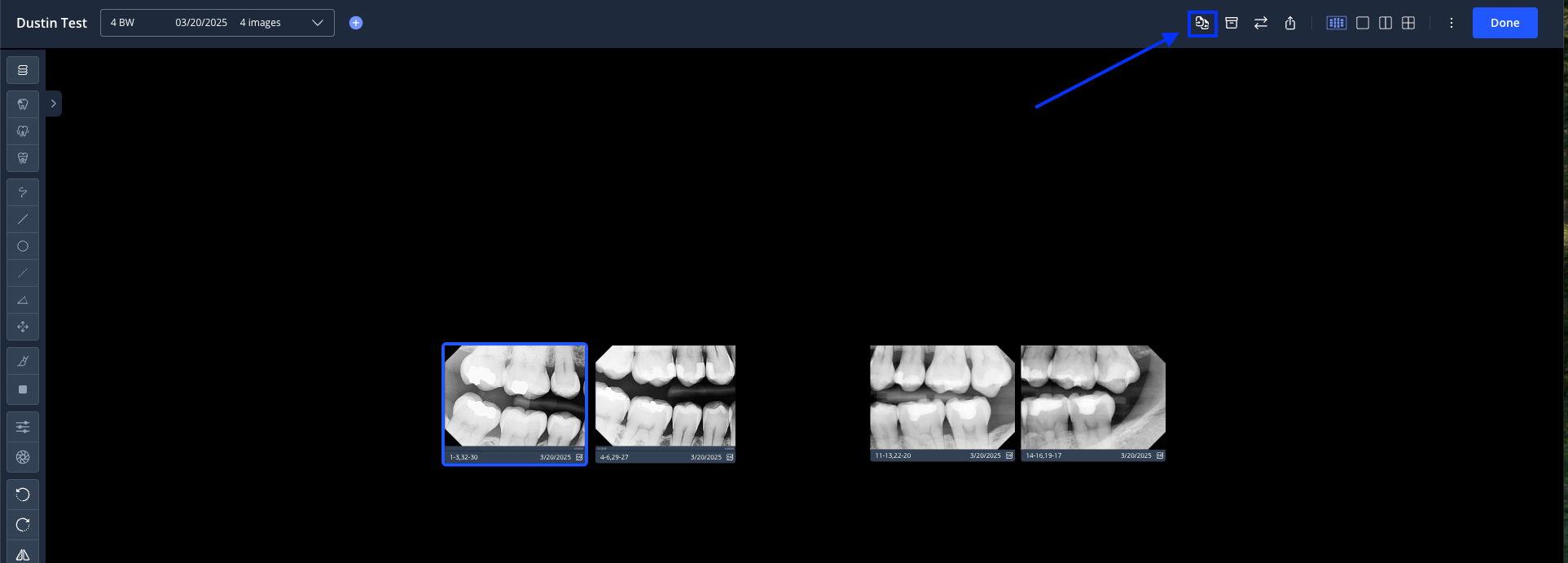

Click on the Compare Images icon.

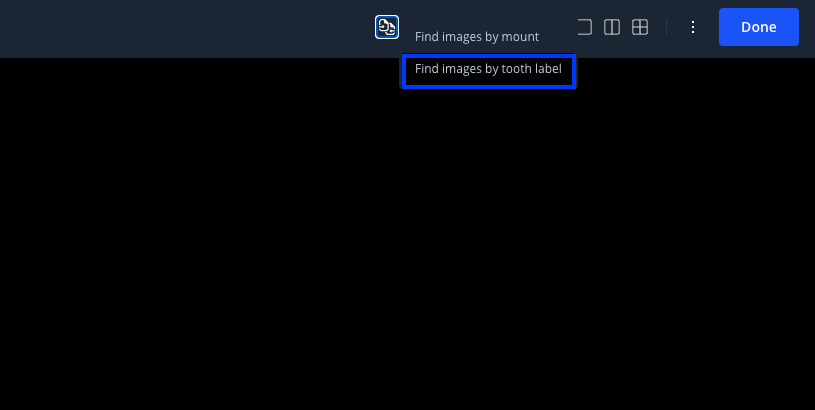

Click Find images by tooth label.

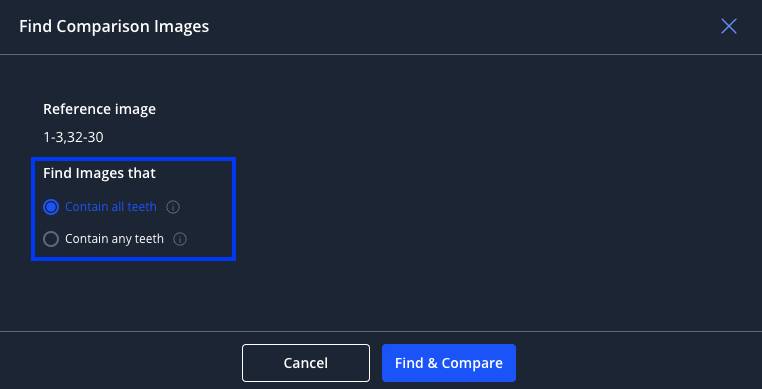

Once you click Find images by tooth label you will see the following:

Reference Image: Teeth labels on the image selected.

Find images that: These are the options for images you want to compare.

• Contain all teeth.

• Contain any teeth.

Click Find & Compare when done.

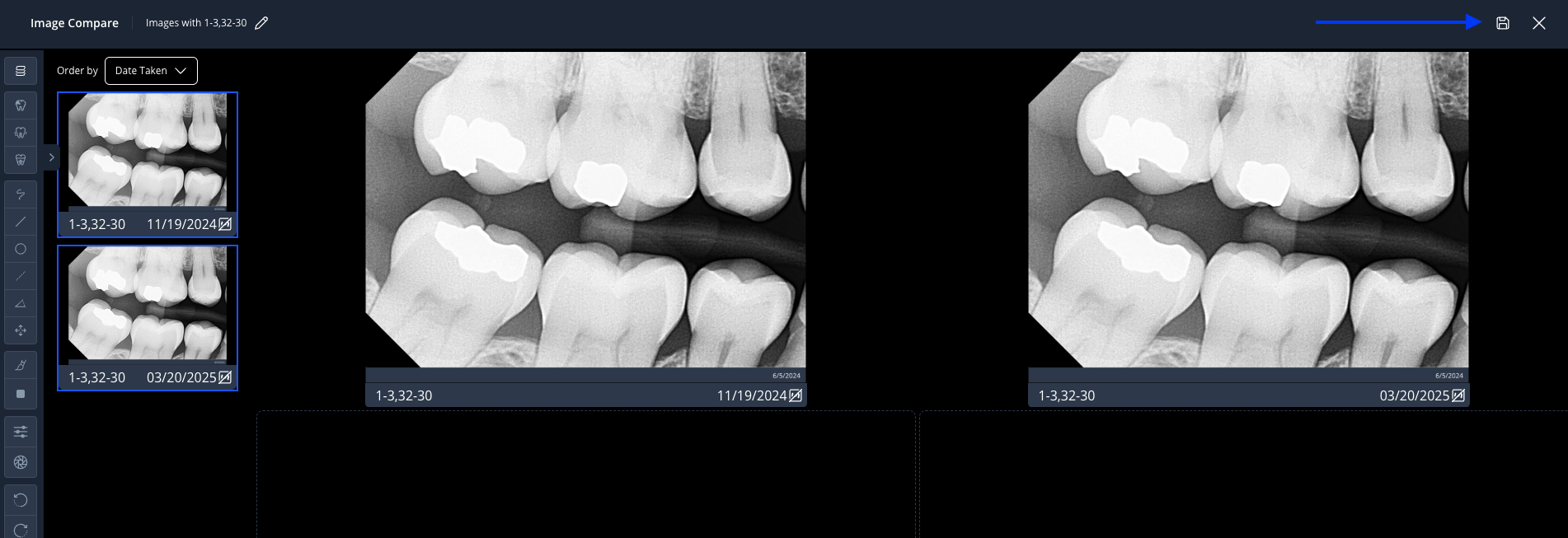

This opens up the compare view with your original image and all other images matching the tooth label selection.

• Move images in and out of the main view boxes to more easily compare them.

  • Click and Drag images from the left into the comparison boxes.

• Double-click an image to apply annotations or filter edits.

  • Any annotations or edits you apply will not be saved to the original mount.

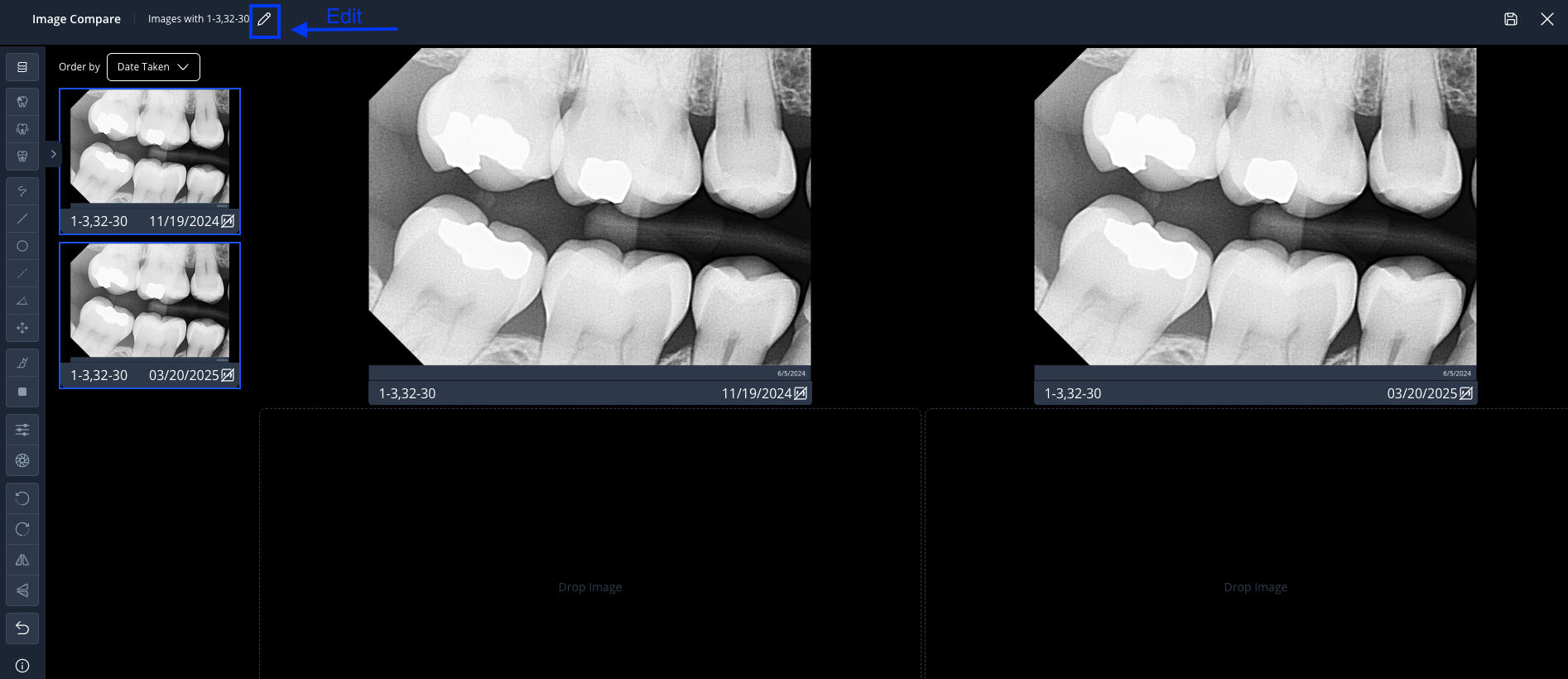

• To edit your comparison images, click the Edit button and choose your changes to the compared images.

If you would like to save your comparison, click the Save button, which will download a copy of the comparison view into the patient's document center under the Imaging Comparison folder.

Exiting the compare view without saving will take you back to the original mount you started at.
