X-Ray Imaging Filters & Lenses – Archy Preprod

Note: These lenses are temporary. Once you apply a lense to an image, you can use the arrow keys to scroll through the other images in that mount with that temporary lense applied.

From the patient's Images select the series you want.

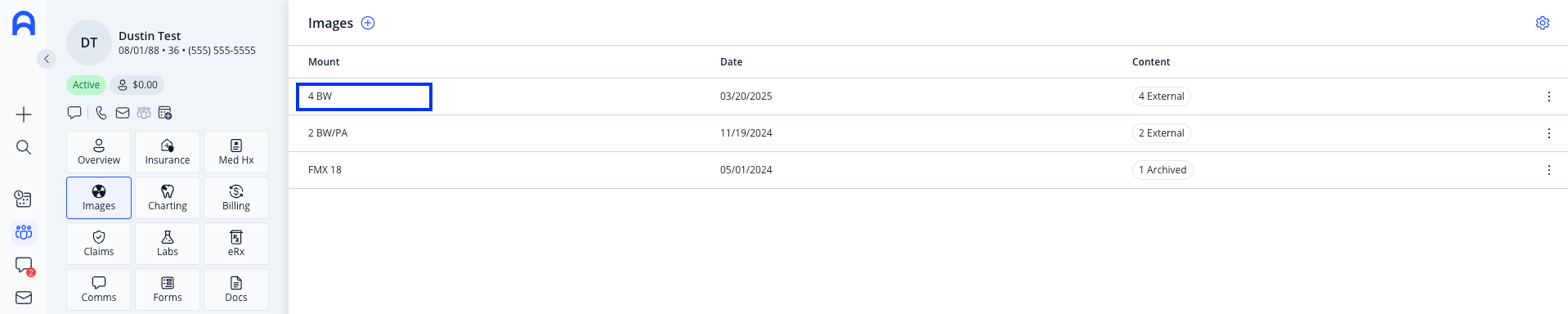

Screenshot 2025-03-20 at 11.44.40 AM.png

Double-click the image to enter detailed editing mode.

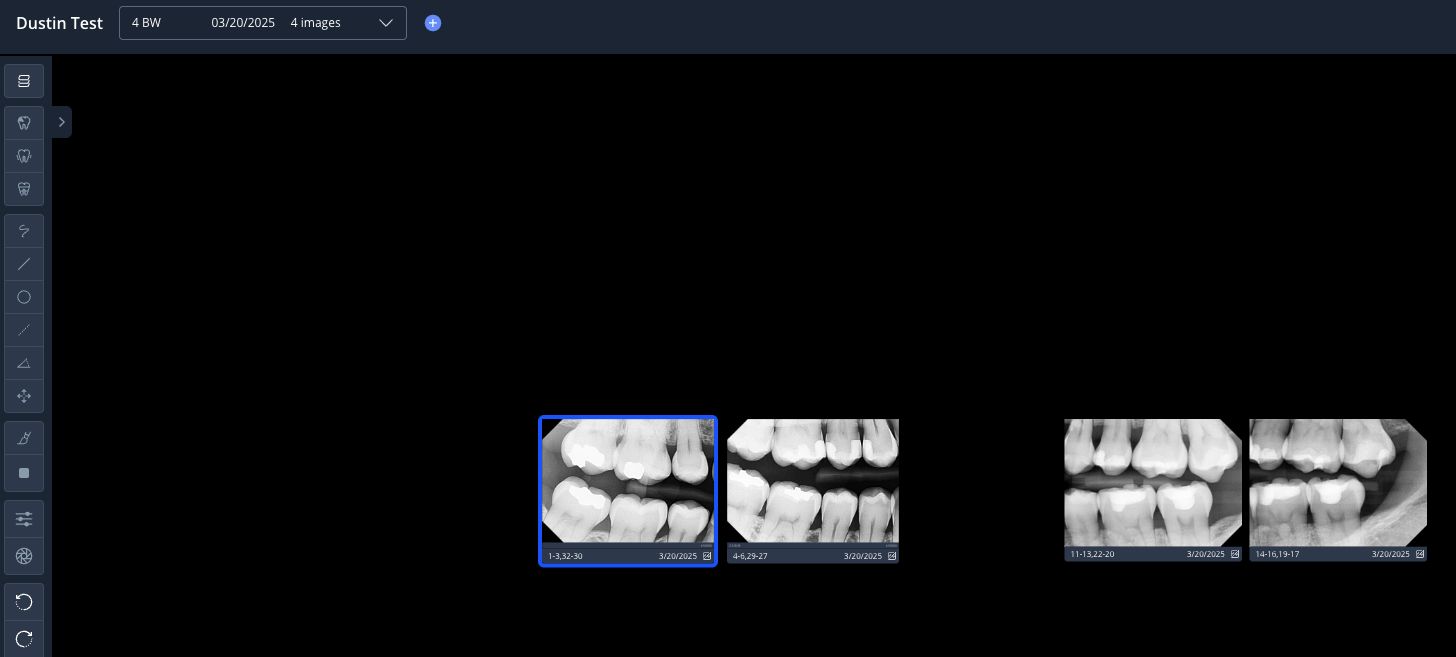

Screenshot 2025-03-20 at 11.51.50 AM.png

Click the Filter Icon on the left-side toolbar, or press W on your keyboard to open up the filters.

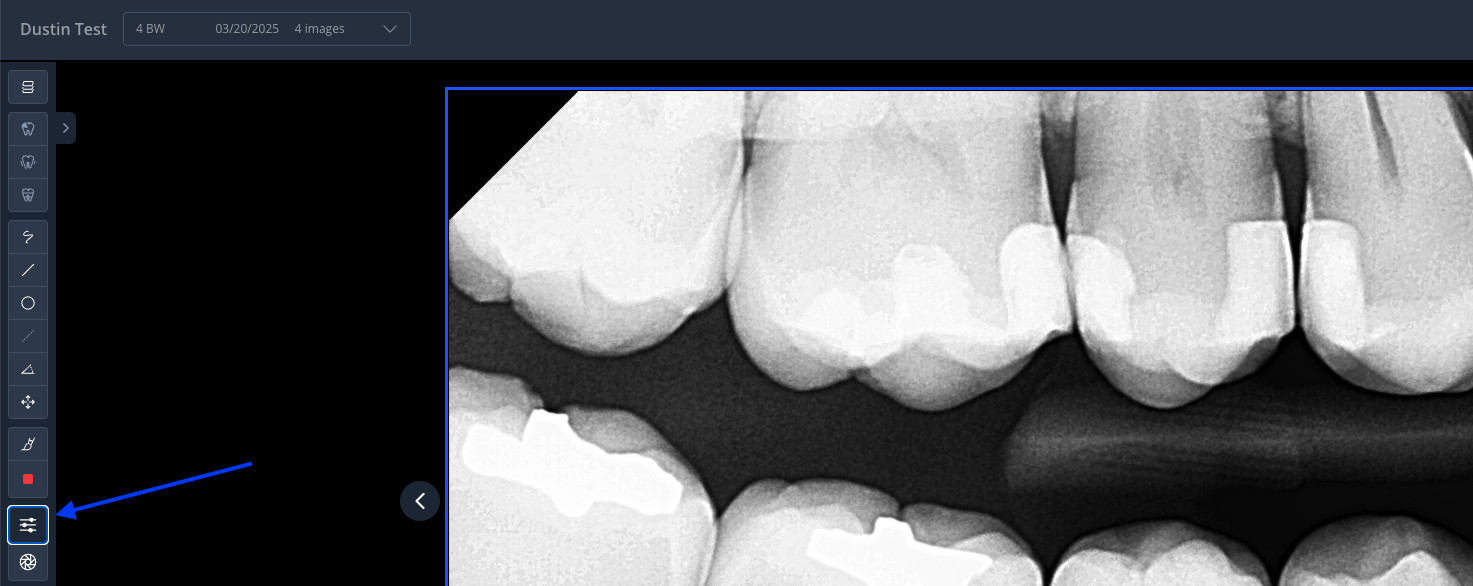

Screenshot 2025-03-20 at 12.36.11 PM.png

You can change the following using the slider bars.

Sharpness of the images
Brightness of the image
Contrast of the image

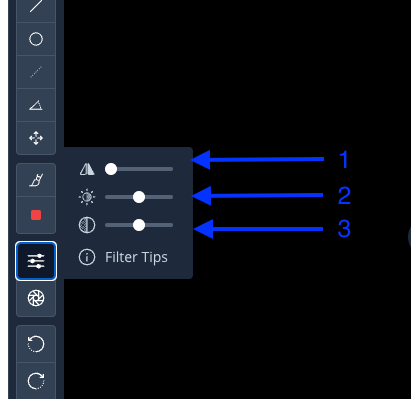

Screenshot 2025-03-20 at 12.37.01 PM.png

You can click anywhere on the image and left-click and drag to adjust the brightness (up & down) & the contrast (left & right) in each dimension.

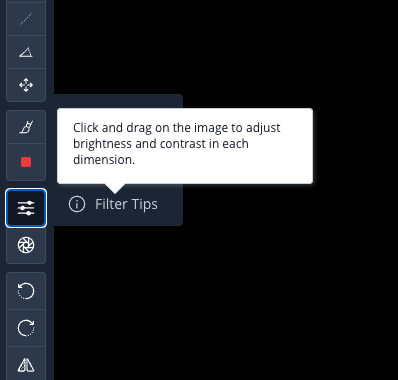

Screenshot 2025-03-20 at 12.42.35 PM.png

To utilize Preset Temporary Lenses:

Click on the Lenses icon.

Screenshot 2025-03-20 at 12.45.09 PM.png

Select the Lens you want to apply.

Invert: This reverses the colors of the image (i.e., black pixels become white, white pixels become black).
Equalize: This is used to improve the contrast in the image.
Auto Enhance: This will enhance the image by fixing its colors, adjusting the contrast, and correcting underexposure.
ColorMap: This associates each pixel value with a color to convey a wide variety of information.

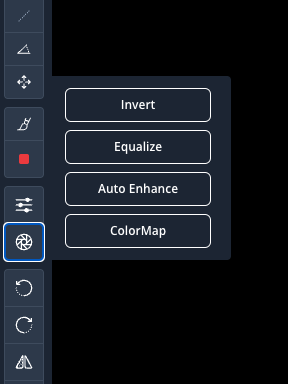

Screenshot 2025-03-20 at 12.46.28 PM.png

Click the Lense Icon again to close the Lenses.

Note: The Lens is removed from the image once you close the lenses or leave editing mode.
